310 Stainless Steel Round Bar

Price: Negotiable
Delivery Time: 5-15work days,or upon negotiation
Payment Terms: T/T, L/C etc
Supply Ability:  3000 Tons/ Per Month
Port  of shipment：Tianjin,  Shanghai or as required.
Packing Details: Standard seaworthy export packing or as customer demands

Request A Quote

INQUIRY
Whatsapp

Product description

Bright finish A479 gr 310 Round Bar, Manufacturer of ASTM A276 Stainless Steel 310 Flat Bar


The most common issue with stainless steel alloys is that they have the tendency to undergo a process known as oxidation. Oxidation corrosion weakens the structural integrity of any project. Using the appropriate material in combination with good finish delays or in some cases prevents corrosion. One such instance is the use of 310 Stainless Steel Round Bar, which has exceptional resistance to corrosion. As an alloy that resists heat, this austenitic steel is known as a very versatile, multi-faceted grade. From food processing to furnaces, the use of a grade Stainless Steel 310 Round Bar is innumerable.


UNS S31000/ S31008 Black Bar Stock, Check Weight Chart of SUS 310 Square Bar

The temperature in furnaces is often very high. Not many steels have the ability to withstand furnace temperatures without losing their tensile strength and mechanical properties. Since the alloy can do this and deliver a good performance, the ASTM A276 Type 310 Square Bar is the preferred material for the construction of furnaces and furnace equipment. In the petroleum industry, the refineries have catalytic recovery systems, the operating temperature ranges between 650°F and 1000°F. The A479 Gr 310 Hex Bar is a successful addition to these refineries because the alloy can function without loss of its properties up to a temperature of 2010°F. The 310 Stainless Steel Bar is also proven to be useful in environments that have mildly carburizing temperatures.

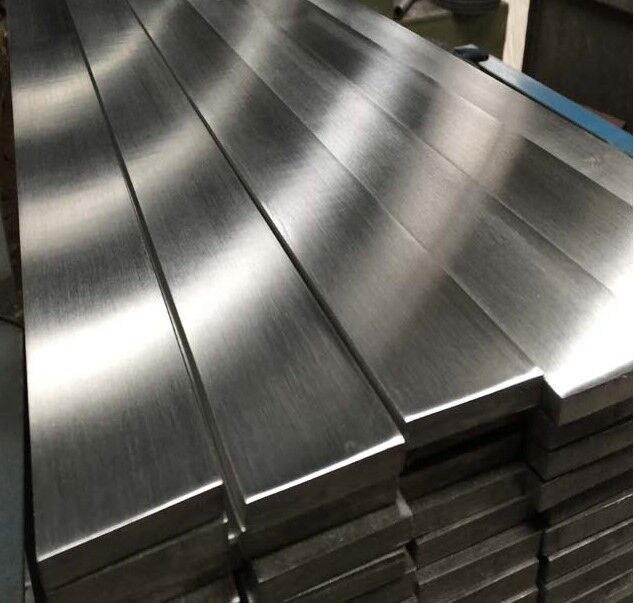

stainless-steel-round-bar.jpg                             STAINLESS STEEL SQUARE BARS.jpg                            ss-hex-bar.jpg                      STAINLESS STEEL FLAT BARS (2).jpg

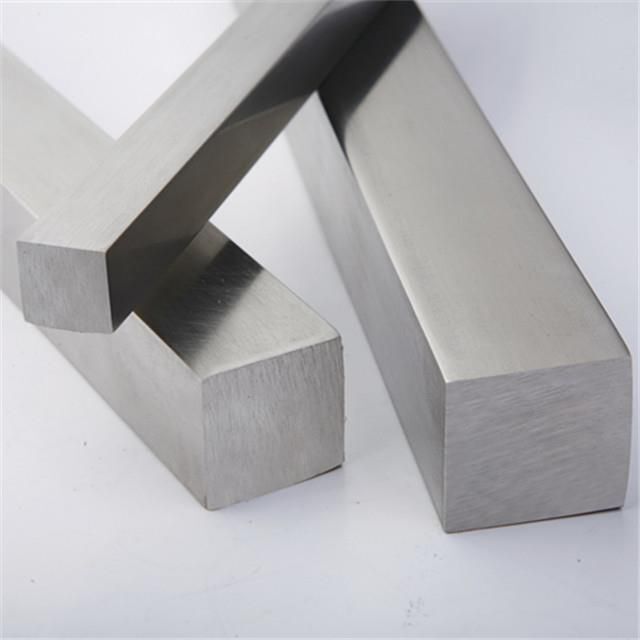

310 STAINLESS STEEL ROUND BARS        310 STAINLESS STEEL SQUARE BARS        310 STAINLESS STEEL HEX BARS             310 STAINLESS STEEL FLAT BARS


310 Stainless Steel Round Bar Chemical Composition


GradeCMnSiPSCrMoNiFe
SS 3100.015 max2 max0.15 max0.20 max0.015 max24-260.15 max19-2154.7 min
SS 310S0.08 max2 max1.0 max0.045 max0.030 max24 – 260.75 max19 – 2153.095 min


A479 gr 310 Bar Types

310 Stainless Steel Round Bright Bars

310 Stainless Steel Square Bar

310 Stainless Steel Square Bar

Stainless Steel 321round Bar

Stainless Steel 321round Bar

48mm Stainless Steel Round Bar 310 310s

48mm Stainless Steel Round Bar 310 310s

 310 310s Astm Sus Stainless Steel 12mm Bar

310 310s Astm Sus Stainless Steel 12mm Bar

 310 Stainless Steel Bright Round Bar

310 Stainless Steel Bright Round Bar

Stainless Steel Polished Round Bar 310

Stainless Steel Polished Round Bar 310

Square Thread Rod 25mm Stainless Steel Bar 310

Square Thread Rod 25mm



WERKSTOFF NR 1.4845 Rods Mechanical Strength

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31454 °C (2650 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %


SS 310 Polished Bar Equivalent


STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 3101.4841S31000SUS 310310S2420Ch25N20S2–X15CrNi25-20
SS 310S1.4845S31008SUS 310S310S1620Ch23N18–X8CrNi25-21


Material Specification Chart of 310 Stainless Steel Round Bar

Stainless Steel Bar Length2 to 6 meters or 8 to 20 feet
SS Rod ChamferingAvailable in 30, 45 & 60 degree thru fully automatic both-end chamfering machine
Ultrasonic Test of ASTM A276 Threaded RodAs per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO it is 100% tested thru Digital Ultrasonic Flaw Detector,10423:2003-PSL 3, MIL STD 2154, SEP 1920:1984
SS Round Bar Size Tolerancesh11
Tolerance of Cold Rolled SS Round Bar LengthStock in special cut to length bar in tolerance – 0/+10mm (-0 +0.5 inch)
Surface Finish of Cold Rolled SS BarCold drawn or Belt polished condition
Bar Heat TreatmentAnnealed and Solution Annealed


Chemical Structure of 310s SS Round Bar

ASTM GradeCarbonManganeseSiliconSulfurPhospherousChromiumNickelMolybdenumOther
3040.08 max2.00 max0.75 max0.030 max0.045 max18.0-20.08.0 11.0--
3160.08 max2.00 max0.75 max0.030 max0.045 max16.0-18.010.0 14.02.0 3.0-
317L0.035 max2.00 max0.75 max0.030 max0.045 max18.0-20.011.0 14.03.0 4.0-
310 S0.08 max2.00 max1.5 max0.030 max0.045 max24.0-26.019.0 22.03.0 4.0-
347 H0.04 0.102.00 max0.75 max0.030 max0.045 max17.0- 19.09.0 13.0-10C(Cb+Ta)<1.10%
3210.082.00 max0.75 max0.030 max0.045 max17.0-20.09.0 12.0-5C 0.70%


310 Stainless Steel Round Bar Grade

300 Series Stainless Steel GradesSS 303, 304, 304L, 309, 310, 316, 316L, 316H, 317, 317L, 321, 347
400 Series Stainless Steel Grades410, 410PSQ, 410QDT, 410HT, 416, 416HT, 416PSQ, 420


Various types of 310 Stainless Steel Half Round Steel Bar:


Mirror polished finish stainless steel round bars

Mirror polished finish stainless steel round bar

2mm, 3mm, 6mm rod bars, ASTM A242 SS Round Steel Bars

2mm, 3mm, 6mm rod bar, ASTM A242 SS Round Steel Bar

14mm Stainless Steel Hot Rolled Round Bars

14mm Stainless Steel Hot Rolled Round Bar

stainless steel round bars 30mm diameter

stainless steel round bars 30mm diameter

10mm 16mm 18mm 20mm 25mm stainless steel Round rod bars

10mm 16mm 18mm 20mm 25mm stainless steel Round rod bar

Cold Rolled Stainless Round Bars from 5mm to 250mm diameter

Cold Rolled Stainless Steel Round Bar from 5mm to 250mm diameter

ASTM standard A564 hot rolled 120mm stainless round rod

ASTM standard A564 hot rolled 120mm stainless steel round rod

15mm stainless steel rod

15mm stainless steel rod

Stainless Steel Bright Round Bars

Stainless Steel Bright Round Bar

Surface Finish of A286 Round Bar


Surface Finish of A286 Round Bar 310

CDCold drawnPPolished
BDBright drawnSRESlit rolled edge
CGCentreless groundHFHot finished
CFCold finishedHRAPHot rolled annealed and pickled
P&TPeeled and turnedRTRough turned/peeled
STSmooth turnedPRPeeled and reeled


310 Stainless Steel Rod Condition

H&THardened and tempered.
ANNAnnealed
PHPrecipitation hardened.

Size Chart of SS Hex Round Bar 310

Size (mm)Weight (kg/m)Size (mm)Weight (kg/m)Size (mm)Weight (kg/m)
7 x 70.33719 x 192.47938 x 389.916
8 x 80.4420 x 202.74740 x 4010.988
9 x 90.55621 x 213.02942 x 4212.114
10 x 100.68722 x 223.32445 x 4513.906
11 x 110.83124 x 243.95648 x 4815.822
12 x 120.98925 x 254.29250 x 5017.168
13 x 131.16126 x 264.64253 x 5319.29
14 x 141.34628 x 285.38455 x 5520.774
15 x 151.54530 x 306.18160 x 6024.723
16 x 161.75832 x 327.03265 x 6529.015
17 x 171.98534 x 347.93970 x 7033.65
18 x 182.22536 x 368.975 x 7538.629


310 Stainless Steel Bars Sizes

TypeSIZES (mm)SIZES (Inches)ISO Tolerance
Cold Drawn and Polish3.00 - 75.001/8 - 3.00h8-h9-h10-h11
Cold Drawn and Ground10.00 - 75.005/6 - 2.50h8-h9-h10-h11
Peeled and Polished40.00 - 150.001.50 - 6.00h11, h11-DIN 1013
Peeled and Ground20.00 - 50.003/4 - 2.00h9-h10-h11


310 SS Hex Bar Standard lengths of 2000 mm up to 6000 mm.

Cut to size on request (tolerance +2/-0 mm).

5.045.0
6.050.0
7.055.0
8.060.0
9.065.0
10.070.0
12.075.0
16.080.0
20.090.0
25.0100.0
30.0130.0
35.0160.0
40.0200.0


310 Polished SS Flat Bar Size Chart

sizes in mmSize (inch)Thickness (mm)Thickness (in Inches)
227/817 & 182/3 - 5/7
2515 to 203/16 - 4/5
301-3/165 to 203/16 - 4/5
321-1/46 to 201/4 - 4/5
351-3/85 to 203/16 - 3/16
401-4/75 to 253/16 - 1
451-7/95 to 253/16 - 1
471-6/717,25 & 322/3, 1 & 1-1/4
5025 to 323/16 - 1-1/4
552-1/165 to 253/16 - 1
572-1/4321-1/4
602-3/85 to 353/16 - 1-3/8
632-1/210 to 303/8 - 1-3/16
652-5/910 to 30 & 353/8 - 1-3/16, & 1-3/8
702-3/46 to 25 & 401/4 - 1, & 1-4/7
7538 to 255/16 - 1
803-1/88 to 205/16 - 4/5
903-1/28 to 205/16- 4/5
10048, 10, 125/16, 3/8, 1/2


Sizes of Stainless Steel Square Bar 310

Size (mm)Weight per metre (Kg)Size (mm)Weight per metre (Kg)
12 x 121.1430x307.11
16 x 162.0240 x 4012.60
20 x 203.1650 x 5019.80
25 x 254.94


SS 310 Polished Bar Equivalent

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 3101.4841S31000SUS 310310S2420Ch25N20S2–X15CrNi25-20
SS 310S1.4845S31008SUS 310S310S1620Ch23N18–X8CrNi25-21
product details.png

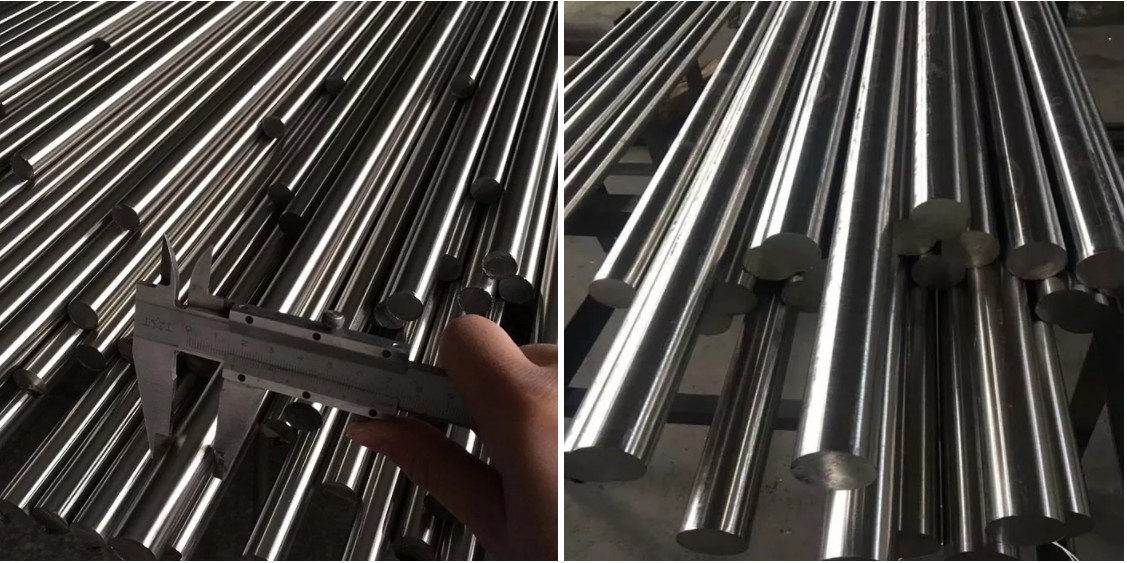

ss bar2.png

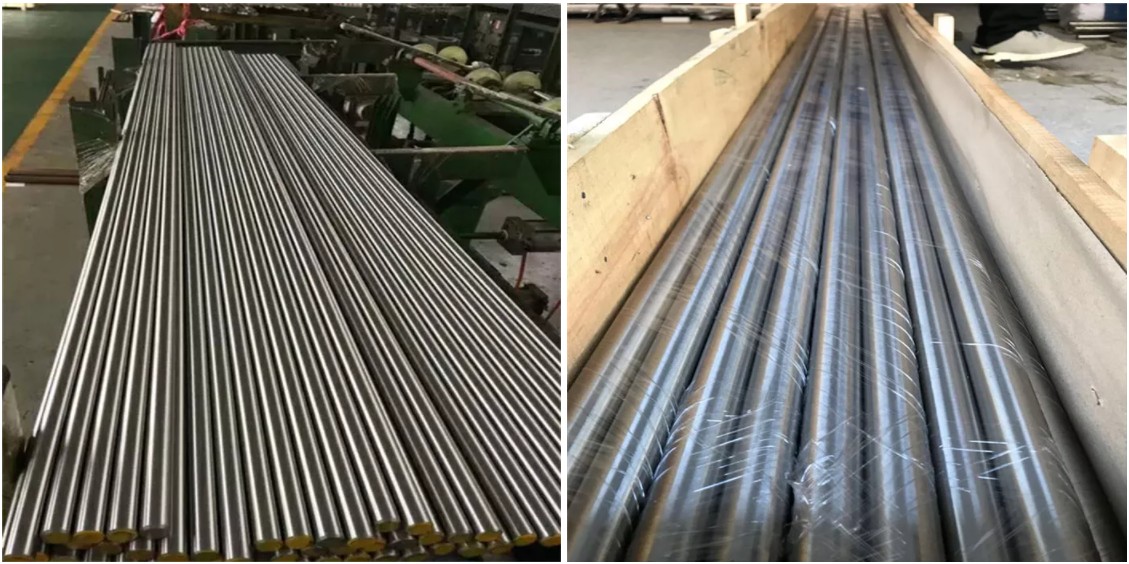

ss bar1.pngpackaging display.png

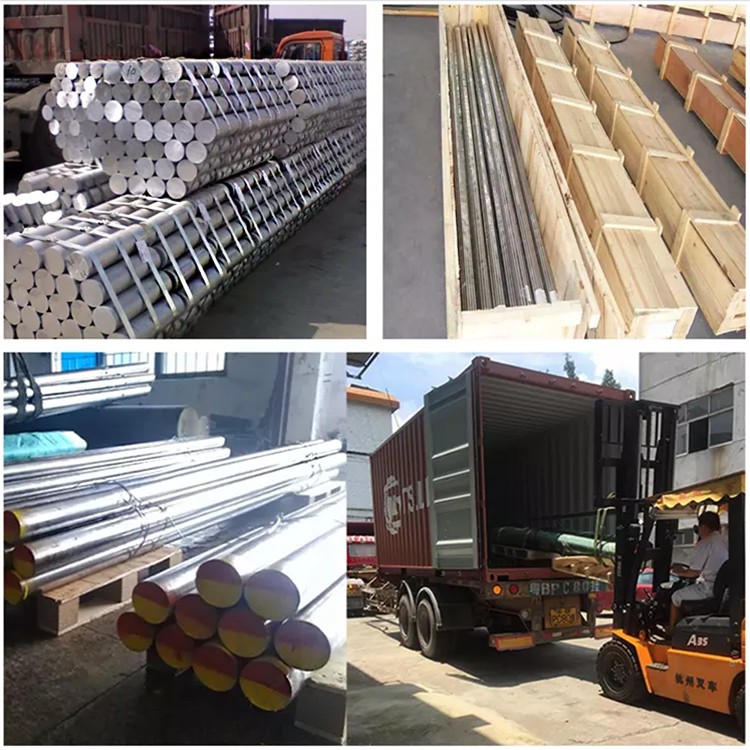

bar pack


why choose us.png

Q1: Are you trading company or manufacturer ?

A1: We are professional manufacturer for many years. we can provide a wide range of steel products.


Q2: Will you delivery the goods on time?

A2: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.


Q3: Do you provide samples ? is it free or extra ?

A3: The sample could can provide for customer with free,but the courier freight will be covered by customer account.


Q4: Do you accept the third party inspection?

A4: Yes absolutely we accept.


Q5: How can I get your quotation as soon as possible?

A5: You can contact us via email, message, wechat, WhatsApp and telephone.Please send us your requirement , we will work out a best price soon.
