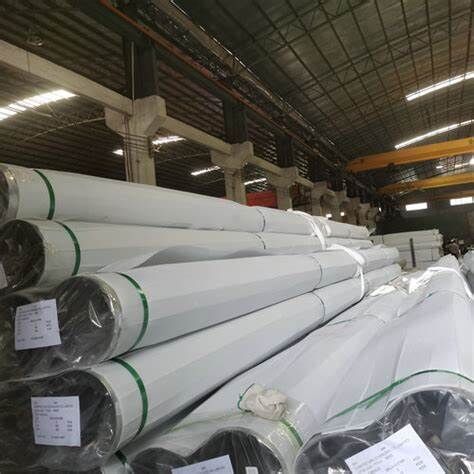

Stainless Steel Pipe TISCO

Price: Negotiable
Delivery Time: 5-15work days,or upon negotiation
Payment Terms: T/T, L/C etc
Supply Ability:  3000 Tons/ Per Month
Port  of shipment：Tianjin,  Shanghai or as required.
Packing Details: Standard seaworthy export packing or as customer demands

Request A Quote

INQUIRY
Whatsapp

Product description

Stainless Steel Pipe Dimension

  • Nominal Pipe Size 1/8 to Nominal Pipe Size 3½
  • Nominal Pipe Size 4 to Nominal Pipe Size 9
  • Nominal Pipe Size 10 to Nominal Pipe Size 24
  • Stainless Steel Pipe Dimension Related link

Stainless Steel Pipe Dimension Range:

OD: 6-530mm / 1/8″ – 24″ ,

Wall Thickness: 0.5 – 65mm.

We can produce and provide products with the other specifications through negotiation.

NPS Nomimal Pipes Size according to ASME B36.10M and ASME B 36.19 in mm

NPSDNODinchODmmSCH5SmmSCH10SmmSCH10mmSCH20mmSCH30mmSTDmmSCH40SmmSCH40mmSCH60mmXSmmSCH80SmmSCH80mmSCH100mmSCH120mmSCH140mmSCH160mmXXSmm
  1/860.40510.3
1.241.24
1.451.731.731.73
2.412.412.41




  1/480.54013.7
1.651.65
1.852.242.242.24
3.023.023.02




  3/8100.67517.1
1.651.65
1.852.312.312.31
3.203.203.20




  1/2150.84021.31.652.112.11
2.412.772.772.77
3.733.733.73


4.787.47
  3/4201.05026.71.652.112.11
2.412.872.872.87
3.913.913.91


5.567.82
1251.31533.41.652.772.77
2.903.383.383.38
4.554.554.55


6.359.09
11/432   1.66042.21.652.772.77
2.973.563.563.56
4.854.854.85


6.359.70
11/240   1.90048.31.652.772.77
3.183.683.683.68
5.085.085.08


7.1410.15
2502.37560.31.652.772.77
3.183.913.913.91
5.545.545.54


8.7411.07
21/265   2.875732.113.053.05
4.785.165.165.16
7.017.017.01


9.5314.02
3803.50088.92.113.053.05
4.785.495.495.49
7.627.627.62


11.1315.24
31/290   4.000101.62.113.053.05
4.785.745.745.74
8.088.088.08




41004.500114.32.113.053.05
4.786.026.026.02
8.568.568.56
11.13
13.4917.12
51255.563141.32.773.403.40

6.556.556.55
9.539.539.53
12.70
15.8819.05
61606.625168.32.773.403.40

7.117.117.11
10.9710.9710.97
14.27
18.2621.95
82008.625219.12.773.763.766.357.048.188.188.1810.3112.7012.7012.7015.0918.2620.6223.0122.23
1025010.750273.03.404.194.196.357.809.279.279.2712.7012.7012.7015.0918.2621.4425.4028.5825.40
1230012.750323.83.964.574.576.358.389.539.5310.3114.2712.7012.7017.4821.4425.4028.5833.3225.40
1435014.000355.63.964.786.357.929.539.539.5311.1315.0912.7012.7019.0523.8327.7931.7535.71
1640016.000406.44.194.786.357.929.539.539.5312.7016.6612.7012.7021.4426.1930.9636.5340.49
1845018.000457.24.194.786.357.9211.139.539.5314.2719.0512.7012.7023.8329.3634.9339.6745.24
2050020.0005084.785.546.359.5312.709.539.5315.0920.6212.7012.7026.1932.5438.1044.4550.01
2255022.000558.84.785.546.359.5312.709.53

22.2312.70
28.5834.9341.2847.6353.98
2460024.000609.65.546.356.359.5314.279.539.5317.4824.6112.7012.7030.9638.8946.0252.3759.54
2665026.000660.4

7.9212.70
9.53


12.70






2870028.000711.2

7.9212.7015.889.53


12.70






3075030.0007626.357.927.9212.7015.889.53


12.70






3280032.000812.8

7.9212.7015.889.53
17.48
12.70






3485034.000863.6

7.9212.7015.889.53
17.48
12.70






3690036.000914.4

7.9212.7015.889.53
19.05
12.70






3895038.000965.2




9.53


12.70






40100040.0001016




9.53


12.70






42105042.0001066.8




9.53


12.70






Nominal Pipe Size 1/8 to Nominal Pipe Size 3½

Nominal Pipe SizeDNmmODinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)
———SCH 5SCH 10SCH 30SCH 40/STDSCH 80SCH 120SCH 160XXS
⅛60.405 in (10.29 mm)0.035 in (0.889 mm)0.049 in (1.245 mm)0.057 in (1.448 mm)0.068 in (1.727 mm)0.095 in (2.413 mm)———
¼80.540 in (13.72 mm)0.049 in (1.245 mm)0.065 in (1.651 mm)0.073 in (1.854 mm)0.088 in (2.235 mm)0.119 in (3.023 mm)———
⅜100.675 in (17.15 mm)0.049 in (1.245 mm)0.065 in (1.651 mm)0.073 in (1.854 mm)0.091 in (2.311 mm)0.126 in (3.200 mm)———
½150.840 in (21.34 mm)0.065 in (1.651 mm)0.083 in (2.108 mm)—0.109 in (2.769 mm)0.147 in (3.734 mm)—4.78mm0.294 in (7.47 mm)
¾201.050 in (26.67 mm)0.065 in (1.651 mm)0.083 in (2.108 mm)2.41mm0.113 in (2.870 mm)0.154 in (3.912 mm)—5.56mm0.308 in (7.823 mm)
1251.315 in (33.40 mm)0.065 in (1.651 mm)0.109 in (2.769 mm)2.90mm0.133 in (3.378 mm)0.179 in (4.547 mm)—6.35mm0.358 in (9.093 mm)
1¼321.660 in (42.16 mm)0.065 in (1.651 mm)0.109 in (2.769 mm)0.117 in (2.972 mm)0.140 in (3.556 mm)0.191 in (4.851 mm)—6.35mm0.382 in (9.703 mm)
1½401.900 in (48.26 mm)0.065 in (1.651 mm)0.109 in (2.769 mm)0.125 in (3.175 mm)0.145 in (3.683 mm)0.200 in (5.080 mm)—7.14mm0.400 in (10.160 mm)
2502.375 in (60.33 mm)0.065 in (1.651 mm)0.109 in (2.769 mm)0.125 in (3.175 mm)0.154 in (3.912 mm)0.218 in (5.537 mm)0.250 in (6.350 mm)8.74mm0.436 in (11.074 mm)
2½652.875 in (73.02 mm)0.083 in (2.108 mm)0.120 in (3.048 mm)0.188 in (4.775 mm)0.203 in (5.156 mm)0.276 in (7.010 mm)0.300 in (7.620 mm)0.344 in (8.738 mm)0.552 in (14.021 mm)
3803.500 in (88.90 mm)0.083 in (2.108 mm)0.120 in (3.048 mm)0.188 in (4.775 mm)0.216 in (5.486 mm)0.300 in (7.620 mm)0.350 in (8.890 mm)0.438 in (11.13 mm)0.600 in (15.240 mm)
3½904.000 in (101.60 mm)0.083 in (2.108 mm)0.120 in (3.048 mm)0.188 in (4.775 mm)0.226 in (5.740 mm)0.318 in (8.077 mm)——0.636 in (16.154 mm)


Nominal Pipe Size 4 to Nominal Pipe Size 9


NPSDNmmODinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)
———SCH 5SCH 10SCH 20SCH 30SCH 40/STDSCH 60SCH 80SCH 100SCH 120SCH 140SCH 160
41004.500 in (114.30 mm)0.083 in (2.108 mm)0.120in(3.048 mm)—0.188in(4.775 mm)0.237 in (6.02 mm)0.281in (7.137 mm)0.337 in (8.560 mm)—0.437in (11.13 mm)—0.531in (13.49 mm)
4½1155.000 in (127.00 mm)————0.247 in (6.274 mm)—0.355 in (9.017 mm)————
51255.563 in (141.30 mm)0.109 in (2.769 mm)0.134in(3.404 mm)——0.258 in (6.553 mm)—0.375 in (9.525 mm)—0.500in (12.70 mm)—0.625 in (15.875 mm)
61506.625 in (168.27 mm)0.109 in (2.769 mm)0.134in (3.404 mm)——0.280 in (7.112 mm)—0.432 in (10.973 mm)—0.562in (14.27 mm)—0.719in (18.263 mm)
82008.625 in (219.08 mm)0.109 in (2.769 mm)0.148in (3.759 mm)0.250 in(6.35 mm)0.277in(7.036 mm)0.322 in (8.179 mm)0.406in(10.312 mm)0.500 in (12.70 mm)0.593in(15.09 mm)0.718in (18.2 6mm)0.812in(20.62mm)0.906in (23.01 mm)

Nominal Pipe Size 10 to Nominal Pipe Size 24

Nominal Pipe SizeDNmmODinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)
———SCH 5sSCH 5SCH 10sSCH 10SCH 20SCH 30
1025010.75 in (273.05 mm)0.134 in (3.404 mm)0.134 in (3.404 mm)0.165 in (4.191 mm)0.165 in (4.191 mm)0.250 in (6.350 mm)0.307 in (7.798 mm)
1230012.75 in (323.85 mm)0.156 in (3.962 mm)0.165 in (4.191 mm)0.180 in (4.572 mm)0.180 in (4.572 mm)0.250 in (6.350 mm)0.330 in (8.382 mm)
1435014.00 in (355.60 mm)0.156 in (3.962 mm)0.156 in (3.962 mm)0.188 in (4.775 mm)0.250 in (6.350 mm)0.312 in (7.925 mm)0.375 in (9.525 mm)
1640016.00 in (406.40 mm)0.165 in (4.191 mm)0.165 in (4.191 mm)0.188 in (4.775 mm)0.250 in (6.350 mm)0.312 in (7.925 mm)0.375 in (9.525 mm)
1845018.00 in (457.20 mm)0.165 in (4.191 mm)0.165 in (4.191 mm)0.188 in (4.775 mm)0.250 in (6.350 mm)0.312 in (7.925 mm)0.437 in (11.100 mm)
2050020.00 in (508.00 mm)0.188 in (4.775 mm)0.188 in (4.775 mm)0.218 in (5.537 mm)0.250 in (6.350 mm)0.375 in (9.525 mm)0.500 in (12.700 mm)
2460024.00 in (609.60 mm)0.218 in (5.537 mm)0.218 in (5.537 mm)0.250 in (6.350 mm)0.250 in (6.350 mm)0.375 in (9.525 mm)0.562 in (14.275 mm)
Nominal Pipe SizeWTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)WTinches (mm)
—SCH 40sSCH 40SCH 60SCH 80sSCH 80SCH 100SCH 120SCH 140SCH 160
100.365 in (9.271 mm)0.365 in (9.271 mm)0.500 in (12.700 mm)0.500 in (12.700 mm)0.593 in (15.062 mm)0.718 in (18.237 mm)0.843 in (21.412 mm)1.000 in (25.400 mm)1.125 in (28.575 mm)
120.375 in (9.525 mm)0.406 in (10.312 mm)0.500 in (12.700 mm)0.500 in (12.700 mm)0.687 in (17.450 mm)0.843 in (21.412 mm)1.000 in (25.400 mm)1.125 in (28.575 mm)1.312 in (33.325 mm)
140.375 in (9.525 mm)0.437 in (11.100 mm)0.593 in (15.062 mm)0.500 in (12.700 mm)0.750 in (19.050 mm)0.937 in (23.800 mm)1.093 in (27.762 mm)1.250 in (31.750 mm)1.406 in (35.712 mm)
160.375 in (9.525 mm)0.500 in (12.700 mm)0.656 in (16.662 mm)0.500 in (12.700 mm)0.843 in (21.412 mm)1.031 in (26.187 mm)1.218 in (30.937 mm)1.437 in (36.500 mm)1.593 in (40.462 mm)
180.375 in (9.525 mm)0.562 in (14.275 mm)0.750 in (19.050 mm)0.500 in (12.700 mm)0.937 in (23.800 mm)1.156 in (29.362 mm)1.375 in (34.925 mm)1.562 in (39.675 mm)1.781 in (45.237 mm)
200.375 in (9.525 mm)0.593 in (15.062 mm)0.812 in (20.625 mm)0.500 in (12.700 mm)1.031 in (26.187 mm)1.280 in (32.512 mm)1.500 in (38.100 mm)1.750 in (44.450 mm)1.968 in (49.987 mm)
240.375 in (9.525 mm)0.687 in (17.450 mm)0.968 in (24.587 mm)0.500 in (12.700 mm)1.218 in (30.937 mm)1.531 in (38.887 mm)1.812 in (46.025 mm)2.062 in (52.375 mm)2.343 in (59.512 mm)

Stainless Steel Pipe Dimensions Tolerance according to ASTM A1016

Weight CalculatorWorking Pressure CalculatorConversion ConverterMetals Weight Calculator
Hardness CalculatorNickel Alloy CalculatorSheet Weight CalculatorInch to mm Chart
Hardness Conversion ChartGauge SizesPipe ScheduleNominal Pipe Size
Length ConverterCapacity Power ConverterArea ConverterVolume Capacity Converter
Power Energy ConverterPressure ConverterTemperature ConverterWeight Conversion Converter


Product Namestainless steel tube/pipe
StandardAISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Material201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321, 310S, 309S, 410, 410S,420, 430, 431, 440A, 904L, 2205, 2507, ect.
Out- DiameterSeamless Pipe: 6mm-530mmWelded Pipe: 8mm-3000mm
Thickness(mm)Seamless Pipe: 1.0mm - 40mmWelded Pipe: 0.5mm-45mmAs Your Request
Tolerancea) Outer Diameter: +/-0.2mmb) Thickness: +/- 1% or as customer requestc) Length: +/- 10mm
Length1-12m or as Your Request
Surface2B,BA(bright annealed) NO.1 NO.2 NO.3 NO.4,2D, 4K, 6K, 8K HL(Hair Line), SB, Embossed,as your request
CertificateBV,ISO ,CE,SGS,TUV
Seaworthy Packaging20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
0ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM



product details.png





ss pipe 3.png

ss pipe 2.png

ss pipe1.png


packaging display.png





tube pack



why choose us.png

Q1: Are you trading company or manufacturer ?

A1: We are professional manufacturer for many years. we can provide a wide range of steel products.


Q2: Will you delivery the goods on time?

A2: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.


Q3: Do you provide samples ? is it free or extra ?

A3: The sample could can provide for customer with free,but the courier freight will be covered by customer account.


Q4: Do you accept the third party inspection?

A4: Yes absolutely we accept.


Q5: How can I get your quotation as soon as possible?

A5: You can contact us via email, message, wechat, WhatsApp and telephone.Please send us your requirement , we will work out a best price soon.
